SERIE 703
Soporte giratorio de acero estampado.
Doble hilera de bolas en giro axial, protegidas por una cazoleta envolvente.
Acabados en zincado o cromado.
Disponible con freno y también con soporte de escuadra a partir de 50 mm. de diámetro
Aro de goma gris.
Ver la tabla mas abajo.
Más información
 |
 |
 |
 |
 |
 |
 |
 |

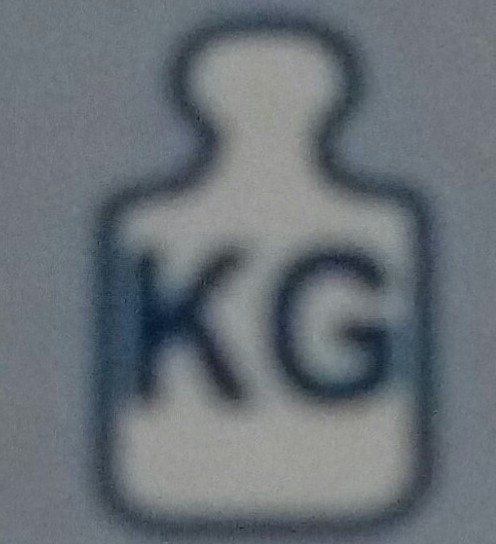

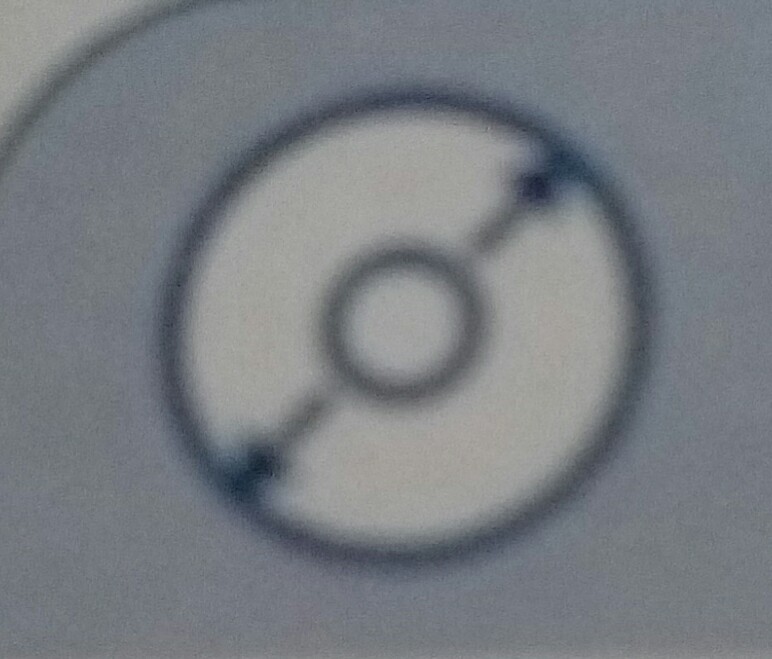

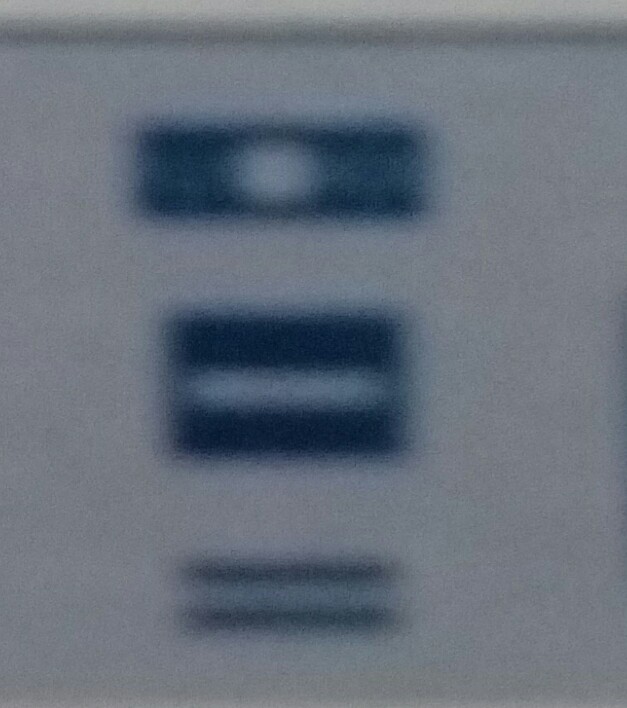

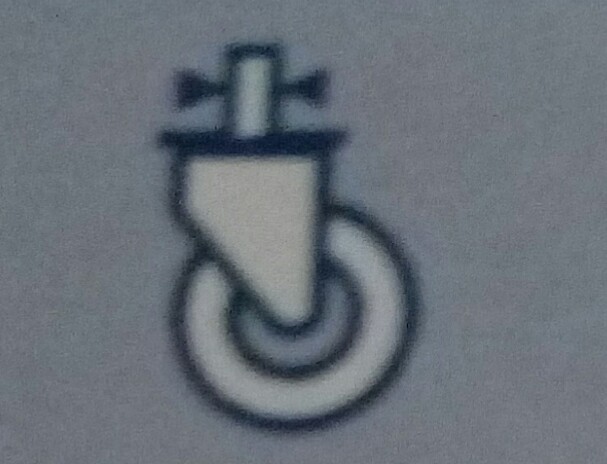

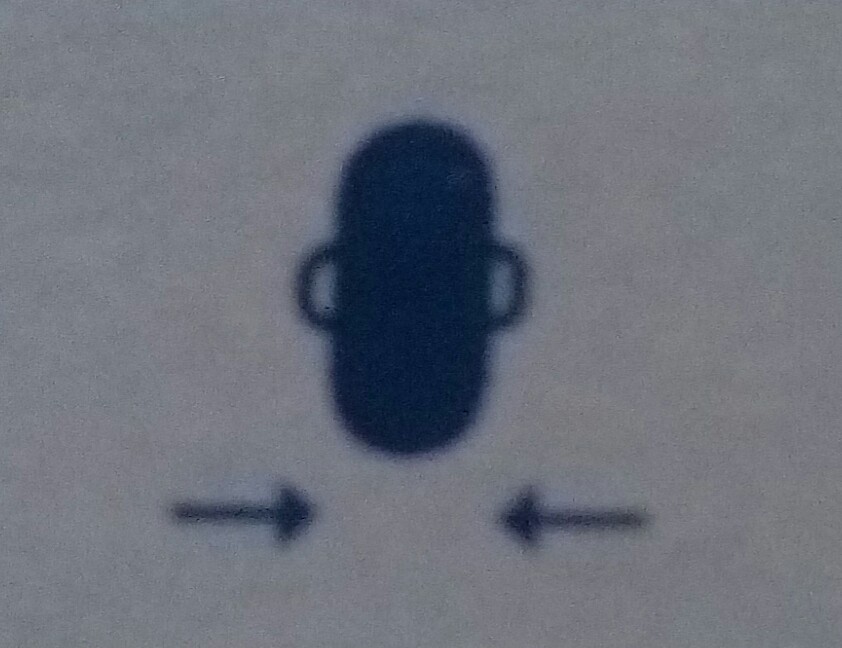

Ref. |
| 50 | 22 | 8 | 28 | 73 | 10 |  |
50 |
703.050.1 Z GG PL |
| 60 | 23 | 8 | 28 | 83 | 10 | |
60 | 703.060.1 Z GG PL |
| 80 | 22 | 10 | 28 | 103 | 10 | |
70 | 703.080.1 Z GG PL |
| 100 | 22 | 10 | 28 | 120 | 10 | |
80 | 703.100.1 Z GG PL |
| 100 | 36 | 12 | 36 | 129 | 12 | |
110 | 703.100.1 Z GG PL C.125 |
| 125 | 38 | 12 | 38 | 134 | 12 | |
130 | 703.125.1 Z GG PL C125 |
|
|
|
|
|
|
|
|
Ref. |
| 50 | 22 | 8 | 28 | 73 | 10 | |
50 |
703.050.1 Z GG PL F |
| 60 | 23 | 8 | 28 | 83 | 10 | |
60 | 703.060.1 Z GG PL F |
| 80 | 22 | 10 | 28 | 103 | 10 | |
70 | 703.080.1 Z GG PL F |
| 100 | 22 | 10 | 28 | 120 | 10 | |
80 | 703.100.1 Z GG PL F |
| 100 | 36 | 12 | 36 | 129 | 12 | |
110 | 703.100.1 Z GG PL F C.125 |
| 125 | 38 | 12 | 38 | 134 | 12 | |
130 | 703.125.1 Z GG PL F C125 |
|
|
|
 |
 |
 |
|
|

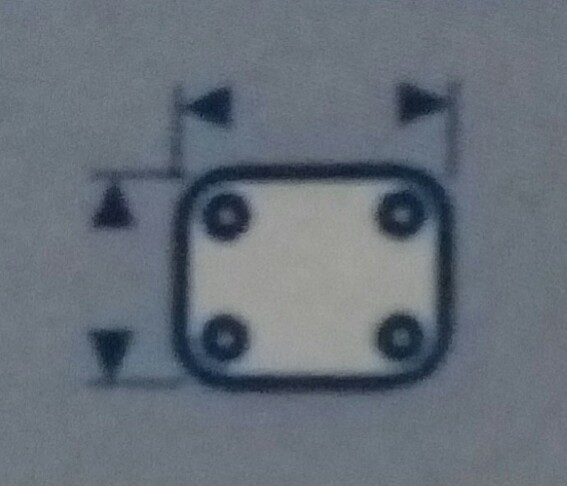

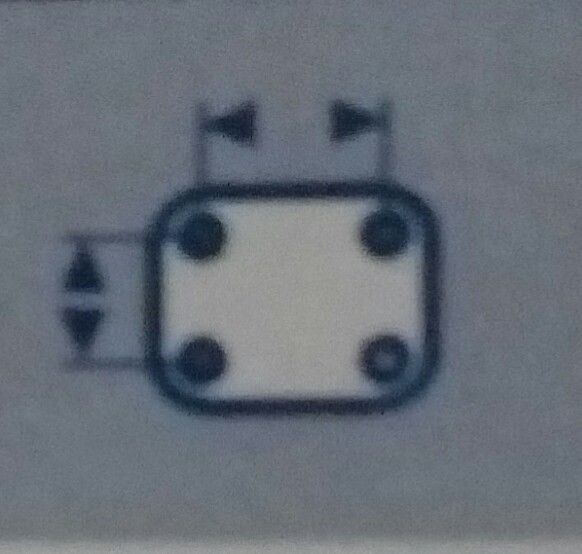

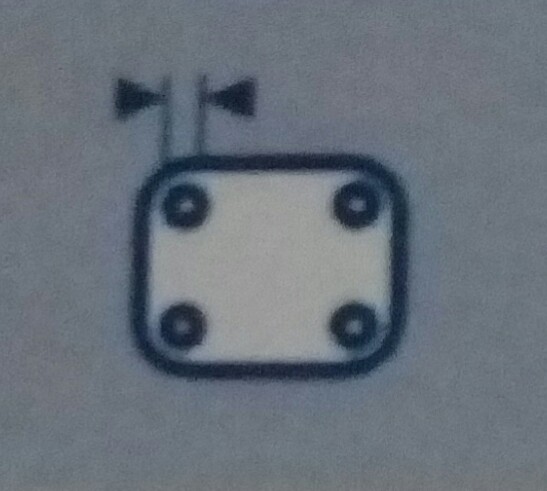

Ref. |
| 50 | 22 | 75 | 6 | 64X48 | 50X36 | |
50 |
703.050.2 Z GG PL |
| 60 | 23 | 85 | 6 | 64X48 | 50X36 | |
60 | 703.060.2 Z GG PL |
| 80 | 22 | 105 | 6 | 64X48 | 50X36 | |
70 | 703.080.2 Z GG PL |
| 100 | 22 | 122 | 6 | 64X48 | 50X36 | |
80 | 703.100.2 Z GG PL |
| 100 | 36 | 132 | 8 | 90X70 | 70X50 | |
110 | 703.100.2 Z GG PL C.125 |
| 125 | 38 | 157 | 8 | 90X70 | 70X50 | |
130 | 703.125.2 Z GG PL C125 |
|
|
|
|
|
|
|
|
Ref. |
| 50 | 22 | 75 | 6 | 64X48 | 50X36 | |
50 |
703.050.2 Z GG PL F |
| 60 | 23 | 85 | 6 | 64X48 | 50X36 | |
60 | 703.060.2 Z GG PL F |
| 80 | 22 | 105 | 6 | 64X48 | 50X36 | |
70 | 703.080.2 Z GG PL F |
| 100 | 22 | 122 | 6 | 64X48 | 50X36 | |
80 | 703.100.2 Z GG PL F |
| 100 | 36 | 132 | 8 | 90X70 | 70X50 | |
110 | 703.100.2 Z GG PL F C.125 |
| 125 | 38 | 157 | 8 | 90X70 | 70X50 | |
130 | 703.125.2 Z GG PL F C125 |
